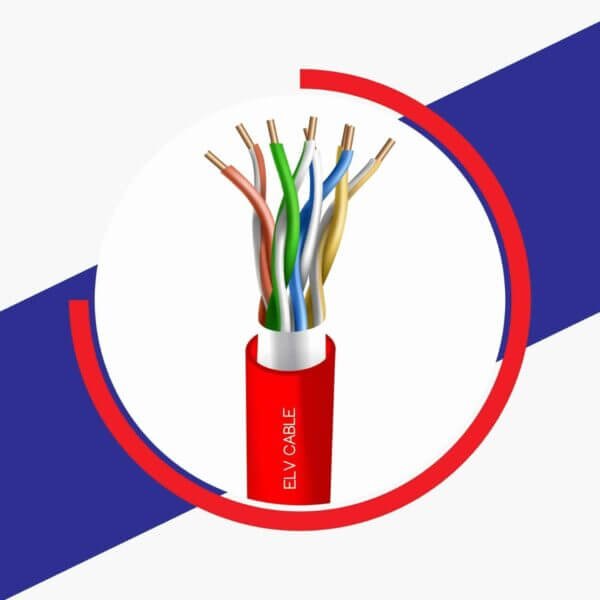

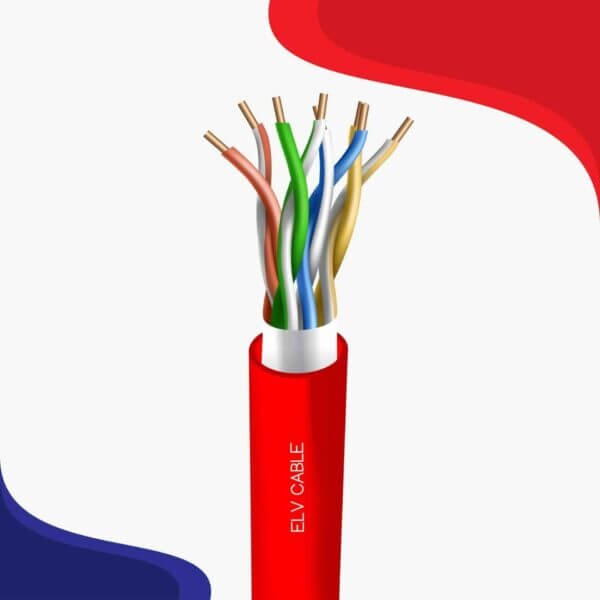

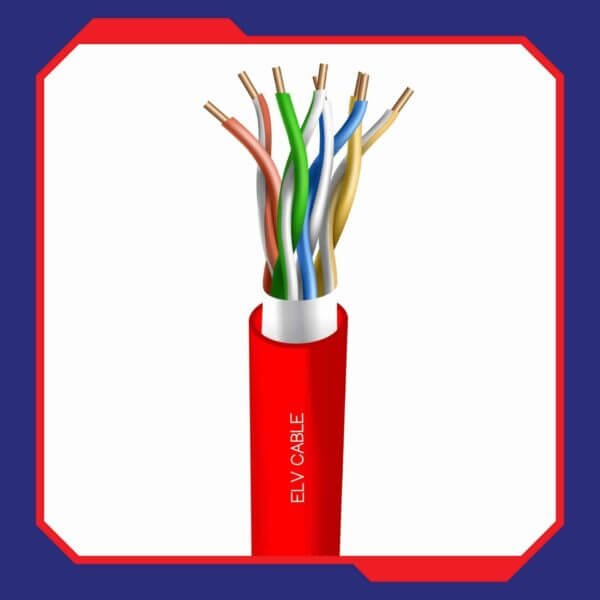

Cat5e F-Utp 24awg 4pair Series Red Color

د.إ 100.00

Standards: CAT5e ANSI/TIA/568.2-D 100 MHz CENELEC EN 50288-3 CAT5e IEC 61156-5 (ISO/IEC-11801 Class D)

General Specification:

Conductor: ELV Copper
Conductor Size: 24AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: Polyester-Aluminum foil
Outer Jacket: PE
Jacket Color: Black

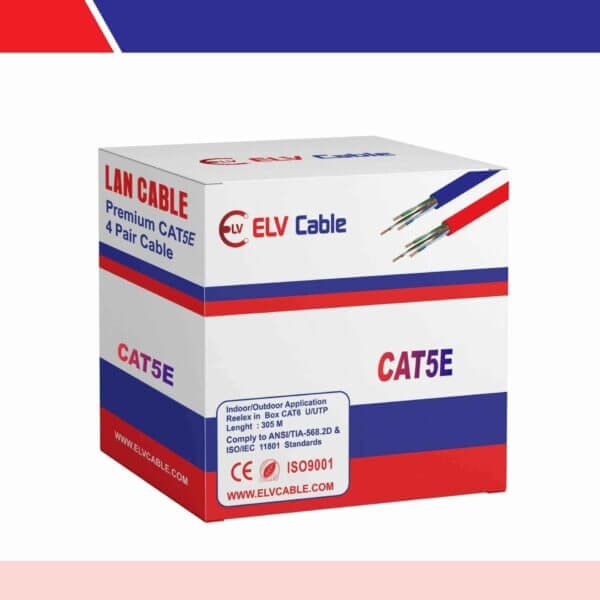

Packing: 305m / Box
Item Code: 5X242MPR

0 People watching this product now!
Description

elv cable  Cat5e F-Utp 24awg 4pair Series Red Color

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers. Cat5e F-Utp 24awg 4pair Series Red Color

Application

  • Audio/Video Intercom System
  • Public Address System
  • Access Control System
  • Burglar Alarm System
  • Lighting Control System
  • CCTV Systems
  • Gate Automation
  • Smart Home Automation
  • Building Automation
  • Computer Systems
  • Electronics Circuits
  • Measurement Devices
  • SMATV CATV Systems
  • Office Equipment’s
  • And Other ELV Systems

Cat5e F-Utp 24awg 4pair Series Red Color

PHYSICAL AND MECHANICAL PROPERTIES
Basic ConductorELV Copper
Conductor Size24AWG
InsulationHDPE
Number Of Insulated Conductors8, Twisted In 4 Pairs
Color Code Of PairsBlue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown
Outer JacketLS0H Halogen Free Flame Retardant Or PVC Compound
Standard Jacket ColorGray/Blue/Black
Standard Surface MarkingIncludes  ELV CABLE  P/N, Cable Description, Meter Mark And Batch Number
Pulling Force50 N/Mm2 Max.
Short Term Bend Radius6xOD (Mm)
Storage Temperature-20 To +80C
Temperature Operating Range-20 To +60C
Installation Temperature Range0 To +50C
Flame TestIEC 60332-1
ELECTRICAL SPECIFICATIONS
Characteristic Impedance100―6 Ohm @ 1-100 MHzDielectric Strength1500 Volts/1 Minute Min Rms
DC Resistance93 Ohm/Km Max.Velocity Of Propagation (NVP)67-69%
Resistance Unbalance2% Max.Insulation Resistance5000 Mega Ohm•Km Min. @ 500 Vdc
Mutual Capacitance5.6 NF/100m  Max.   @ 1 KHzCoupling Attenuation40 DB Min @ 30-100 MHz 40-20Log(F/100) @100-300 MHz
Cap. Unbalance (Wire To Ground)1500 PF/Km Max. @ 1 KHz.
Voltage Rating72 Vdc Max.
Ordering Information
Item CodeDescription
5X242MPR24awg Cat5e F-Utp Series
