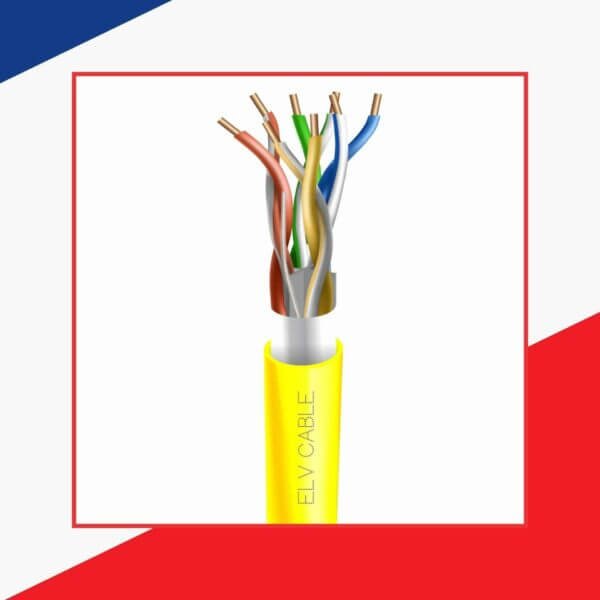

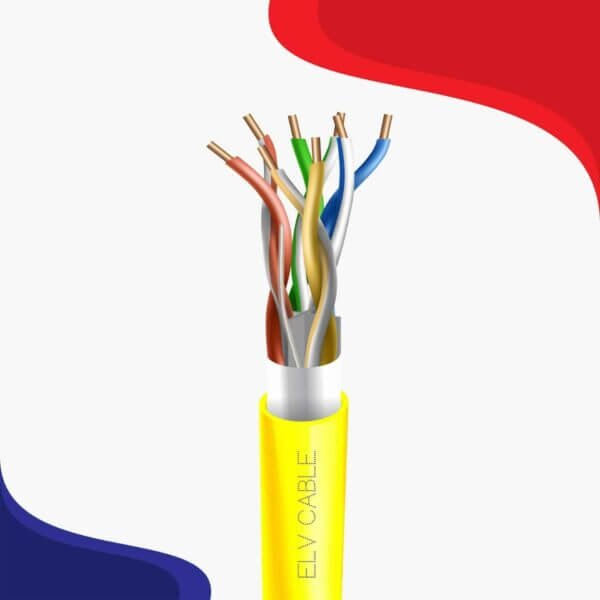

Cat6a F-Utp 23awg 4pair Series Yellow Color
PHYSICAL AND MECHANICAL PROPERTIES | |
Basic Conductor | ELV Copper |
Conductor Size | 23AWG |
Insulation | HDPE |
Number Of Insulated Conductors | 8, Twisted In 4 Pairs |
Color Code Of Pairs | Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown |
Outer Jacket | PVC |
Standard Jacket Color | Gray/Blue/Black |
Standard Surface Marking | Includes ELV CABLE P/N, Cable Description, Meter Mark And Batch Number |
Pulling Force | 110 N MAX |
Short Term Bend Radius | 6xOD (Mm) |
Storage Temperature | -20 To +80C |
Temperature Operating Range | -20 To +60C |
Installation Temperature Range | 0 To +50C |
Flame Test | IEC 60332-1 |
ELECTRICAL SPECIFICATIONS | |||
Characteristic Impedance | 100―6 Ohm @ 1-100 MHz | Dielectric Strength | 1500 Volts/1 Minute Min Rms |
DC Resistance | 93 Ohm/Km Max. | Velocity Of Propagation (NVP) | 67-69% |
Resistance Unbalance | 2% Max. | Insulation Resistance | 5000 Mega Ohm•Km Min. @ 500 Vdc |
Mutual Capacitance | 5.6 NF/100m Max. @ 1 KHz | Coupling Attenuation | IEC 61156-5 TYPE III |
Cap. Unbalance (Wire To Ground) | 1500 PF/Km Max. @ 1 KHz. | ||
Voltage Rating | 72 Vdc Max. |
Ordering Information | ||
Item Code | Description | |
6A236MPY | 23awg 4pair Cat6a F-Utp Series |
