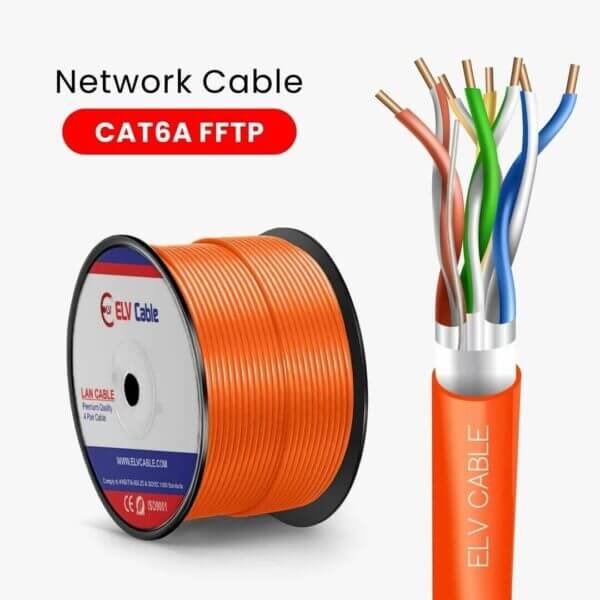

Cat6a F-Ftp 23awg 4pair cable Orange Color

(1 customer review)

د.إ 180.00

Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -EA)


General Specification:

Conductor: ELV Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: PVC
Jacket Color: Black/Grey/Violet/Orange
Packing: 305M
Item Code: 6A436MPO

Color

Orange

0 People watching this product now!
Description

elv cable Cat6a F-Ftp 23awg 4pair Series Orange Color

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.

Application

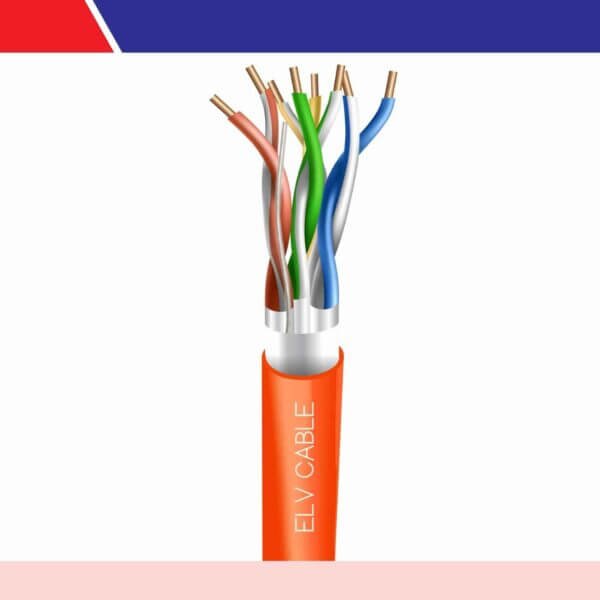

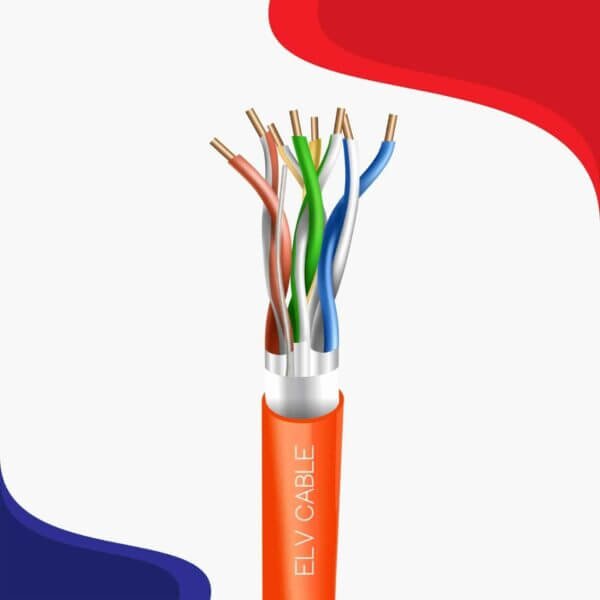

Cat6a F-Ftp 23awg 4pair cable Orange Color

PHYSICAL AND MECHANICAL PROPERTIES
Basic ConductorELV Copper
Conductor Size23AWG
InsulationHDPE
Number Of Insulated Conductors8, Twisted In 4 Pairs
Color Code Of PairsBlue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown
Outer JacketPVC
Standard Jacket ColorGray/Blue/Black
Standard Surface MarkingIncludes  ELV CABLE  P/N, Cable Description, Meter Mark And Batch Number
Pulling Force110 N MAX
Short Term Bend Radius6xOD (Mm)
Storage Temperature-20 To +80C
Temperature Operating Range-20 To +60C
Installation Temperature Range0 To +50C
Flame TestIEC 60332-1
ELECTRICAL SPECIFICATIONS
Characteristic Impedance100―6 Ohm @ 1-100 MHzDielectric Strength1500 Volts/1 Minute Min Rms
DC Resistance93 Ohm/Km Max.Velocity Of Propagation (NVP)67-69%
Resistance Unbalance2% Max.Insulation Resistance5000 Mega Ohm•Km Min. @ 500 Vdc
Mutual Capacitance5.6 NF/100m  Max.   @ 1 KHzCoupling AttenuationIEC 61156-5 TYPE III
Cap. Unbalance (Wire To Ground)1500 PF/Km Max. @ 1 KHz.
Voltage Rating72 Vdc Max.
Ordering Information
Item CodeDescription
6A436MPO23awg 4pair Cat6a F-Ftp Series
