Name: network cable Cat6 U/Utp 305M Red Color - ELV Cables
Brand: ELV Cable
SKU: 6X136MPR
Price: 90.00 AED
Availability: InStock
Rating: 5.00 (1 reviews)

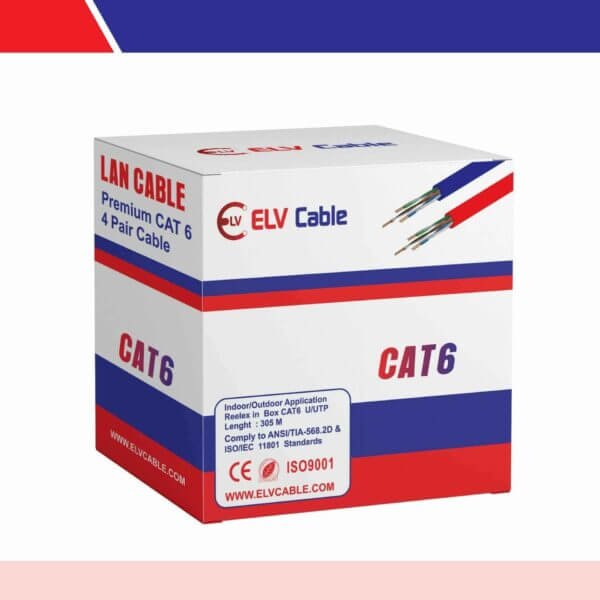

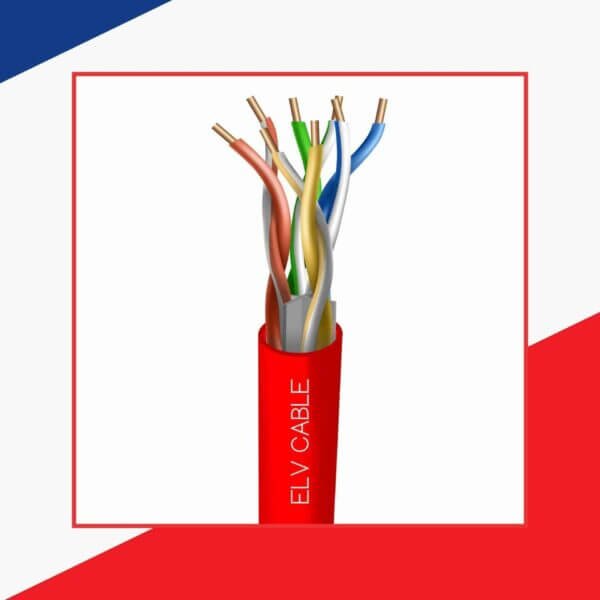

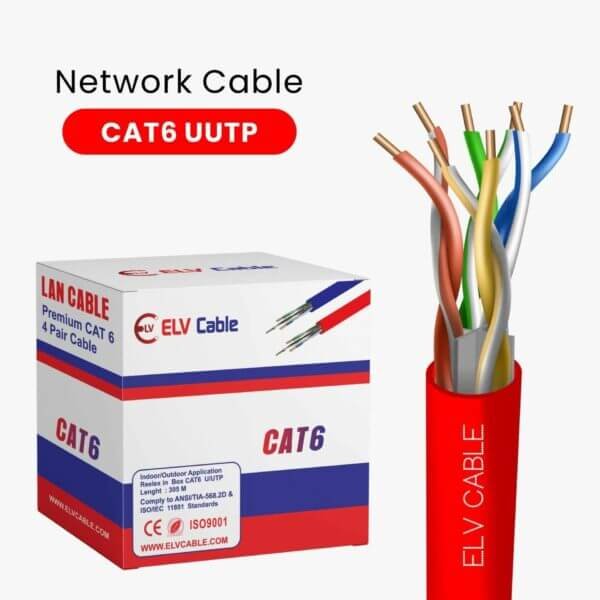

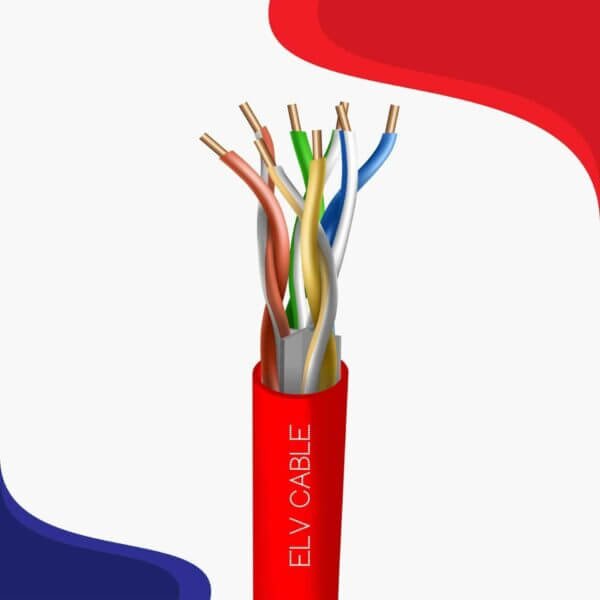

network cable Cat6 U/Utp 305M Red Color

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

د.إ 90.00

Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E)

General Specification:

Conductor: ELV Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: LSZH
Jacket Color: Black/Grey/Violet/Orange
Packing: 305m / Box
Item Code:6X136MPR

Color

Red

0 People watching this product now!

Description

elv cable Cat6 U-Utp 23awg 4pair Series 305M Red Color

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers. Cat6 U-Utp 23awg 4pair Series 305M Yellow Color

Application

Audio/Video Intercom System
Public Address System
Access Control System
Burglar Alarm System
Lighting Control System
CCTV Systems
Gate Automation
Smart Home Automation
Building Automation
Computer Systems
Electronics Circuits
Measurement Devices
SMATV CATV Systems
Office Equipment’s
And Other ELV Systems

network cable Cat6 U/Utp 305M Red Color

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor	ELV Copper
Conductor Size	23AWG
Insulation	HDPE
Number Of Insulated Conductors	8, Twisted In 4 Pairs
Color Code Of Pairs	Blue X White/Blue, Orange X White/Orange, Green X White/Green, Brown X White/Brown
Outer Jacket	LSZH
Standard Jacket Color	Gray/Blue/Black
Standard Surface Marking	Includes ELV CABLE P/N, Cable Description, Meter Mark And Batch Number
Pulling Force	100 N MAX
Short Term Bend Radius	6xOD (Mm)
Storage Temperature	-20 To +80C
Temperature Operating Range	-20 To +60C
Installation Temperature Range	0 To +50C
Flame Test	IEC 60332-1

ELECTRICAL SPECIFICATIONS
Characteristic Impedance	100―6 Ohm @ 1-100 MHz	Dielectric Strength	1500 Volts/1 Minute Min Rms
DC Resistance	93 Ohm/Km Max.	Velocity Of Propagation (NVP)	67-69%
Resistance Unbalance	2% Max.	Insulation Resistance	5000 Mega Ohm•Km Min. @ 500 Vdc
Mutual Capacitance	5.6 NF/100m Max. @ 1 KHz	Coupling Attenuation	IEC 61156-5 TYPE III
Cap. Unbalance (Wire To Ground)	1500 PF/Km Max. @ 1 KHz.
Voltage Rating	72 Vdc Max.

Ordering Information
Item Code	Description
6X136MPR	23awg 4pair Cat6 U-Utp Series 305m
