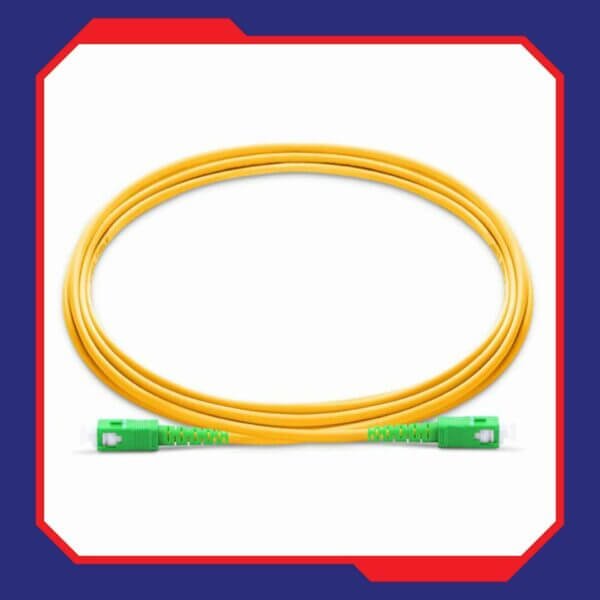

Sc to Sc Apc Patch Cord Fiber Optic Single Mode Simplex Lszh
د.إ 0.00
General Specification
Mode type: Single mode
Cable Type: Simplex
Connector Style: SC-SC
Fiber Type: ITU-T G.652D
Polish type: APC
Diameter : 2.0mm
Outer Jacket: LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength: SM,1310/1550nm
Length: 10Meter
Model No: ELV-3410
Length |
1M ,2M ,3M ,4M ,5M ,8M ,10M ,15M ,20M ,25M ,30M |
---|
elv cable Single Mode Sc-Sc-Apc Simplex Fiber Optic Patch Cord Lszh
ELV CABLE Sc to Sc Apc Patch Cord Fiber Optic Single Mode Simplex Lszh l is normally a tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return loss and low attenuation. Make sure your network is reinforced with ELV CABLE fiber pigtails, as ours are manufactured of superior quality materials. The Pigtail are available in both single and multimode versions with either APC or UPC polish types.
Application
- Audio/Video Intercom System
- Public Address System
- Access Control System
- Burglar Alarm System
- Lighting Control System
- CCTV Systems
- Gate Automation
- Smart Home Automation
- Building Automation
- Computer Systems
- Electronics Circuits
- Measurement Devices
- SMATV CATV Systems
- Office Equipment’s
- And Other ELV Systems
Optical Specifications | |||||||||||
Mode type | Single mode / multi mode | Cable Type | Simplex/Duplex | Connector Style | SC, FC, ST, LC, MTRJ, | ||||||
Polish type | PC,UPC,APC | Diameter | 0.9mm, 1.6mm, 2.0mm, 3.0mm | Lengths mtr. | 1,3,5,10,15 | ||||||
Strength Member | Aramid Yarn | Outer Jacket | LSZH/PVC/OFNR/OFNP | Interchangeability &Vibration | ≤0.2dB | ||||||
Minimum Bend radius | 10 -13mm | Wavelength | SM:1310/1550nm MM:850nm | ||||||||
Operating temperature | -40~75°C | Jacket Color | Single mode | Yellow / Green , Yellow Blue | |||||||
Storage temperature | -45~85°C | Multi mode | OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple) | ||||||||
Fiber type | Â ITU-T G.652D, G.657A1 /A2 | Multi mode OM-2 | Multi mode OM-3 | Multi mode OM-4 | |||||||
Insertion loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | |||||||
Return loss | ≥60dB | ≥30dB | ≥30dB | ≥30dB |
Ordering Information | ||
Item Code | Description | |
ELV-3410 | Single Mode Sc-Sc-Apc Simplex Fiber Optic Patch Cord Lszh |
