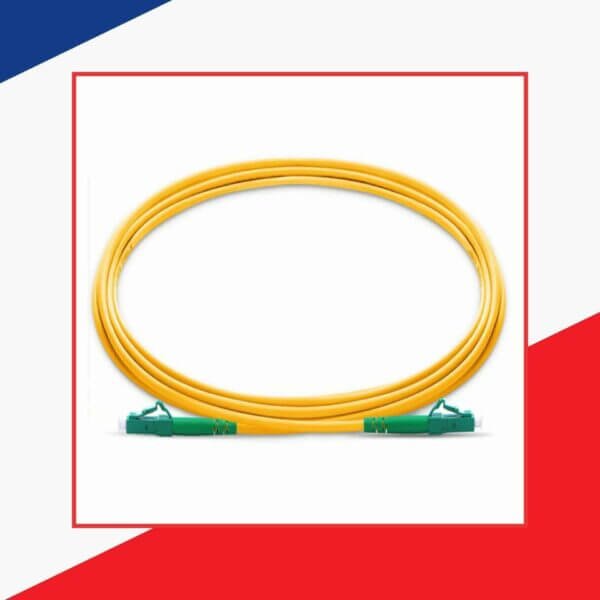

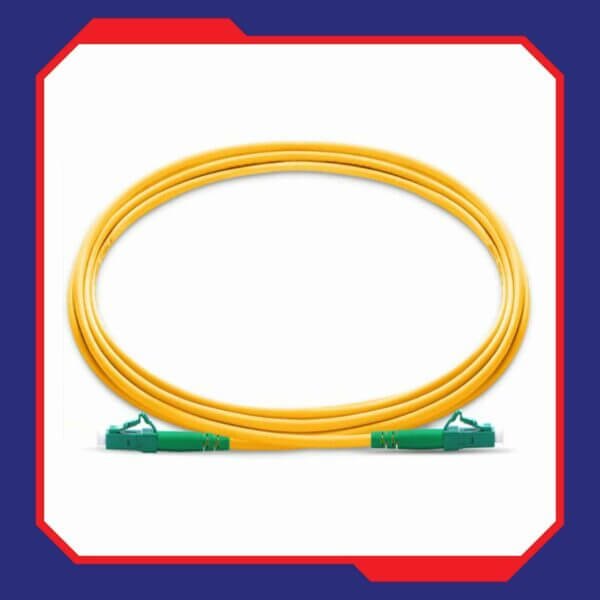

sm LC-LC-Apc Sx Fiber Optic Patch Cord Lszh

Click to enlarge

sm LC-LC-Apc Sx Fiber Optic Patch Cord Lszh

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

د.إ 200.00

General Specification
Mode type: Single mode
Cable Type: Simplex
Connector Style: SC-SC
Fiber Type: ITU-T G.652D
Polish type: APC
Diameter : 2.0mm
Outer Jacket: LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength: SM,1310/1550nm
Length: 1,2,3,4,5,8,10,15,20,25,30Meter
Model No: ELV-3421

Length	1M , 2M , 3M , 4M , 5M , 8M , 10M , 15M , 20M , 25M , 30M

Length

Clear

Compare

Add to wishlist

0 People watching this product now!

Description

elv cable Single Mode Sc-Sc-Apc Simplex Fiber Optic Patch Cord Lszh

ELV CABLE sm LC-LC-Apc Sx Fiber Optic Patch Cord Lszh fiber optic pigtail is normally a tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end issm LC-LC-Apc Sx Fiber Optic Patch Cord Lszh
stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return
loss and low attenuation. Make sure your network is reinforced with ELV CABLE fiber pigtails, as ours are manufactured of superior quality materials. The
Pigtail are available in both single and multimode versions with either APC or UPC polish types.

Application

Audio/Video Intercom System
Public Address System
Access Control System
Burglar Alarm System
Lighting Control System
CCTV Systems
Gate Automation
Smart Home Automation
Building Automation
Computer Systems
Electronics Circuits
Measurement Devices
SMATV CATV Systems
Office Equipment’s
And Other ELV Systems

Optical Specifications
Mode type	Single mode / multi mode	Cable Type		Simplex/Duplex			Connector Style			SC, FC, ST, LC, MTRJ,
Polish type	PC,UPC,APC	Diameter		0.9mm, 1.6mm, 2.0mm, 3.0mm			Lengths mtr.			1,3,5,10,15
Strength Member	Aramid Yarn	Outer Jacket		LSZH/PVC/OFNR/OFNP			Interchangeability &Vibration				≤0.2dB
Minimum Bend radius	10 -13mm				Wavelength			SM:1310/1550nm MM:850nm
Operating temperature	-40~75°C	Jacket Color		Single mode	Yellow / Green , Yellow Blue
Storage temperature	-45~85°C			Multi mode	OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type	ITU-T G.652D, G.657A1 /A2		Multi mode OM-2			Multi mode OM-3			Multi mode OM-4
Insertion loss	≤0.3dB		≤0.3dB			≤0.3dB			≤0.3dB
Return loss	≥60dB		≥30dB			≥30dB			≥30dB

Ordering Information
Item Code	Description
ELV-3421	Single Mode Sc-Sc-Apc Simplex Fiber Optic Patch Cord Lszh
