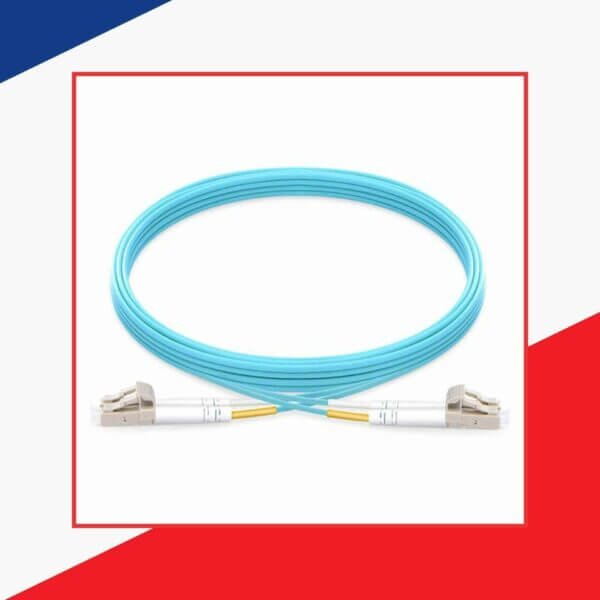

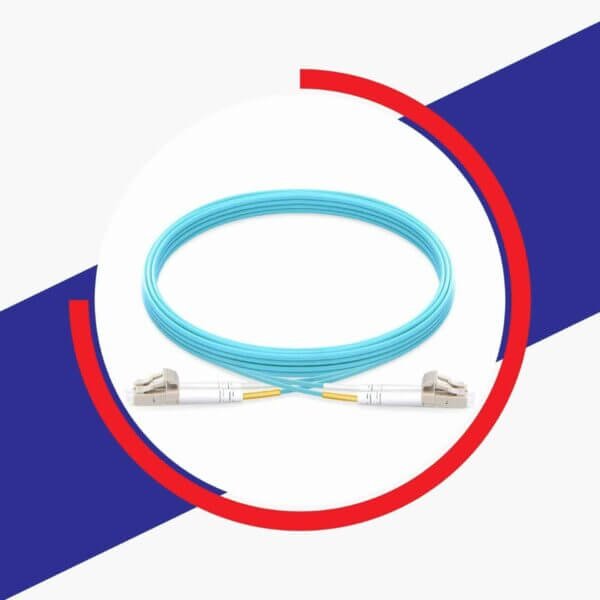

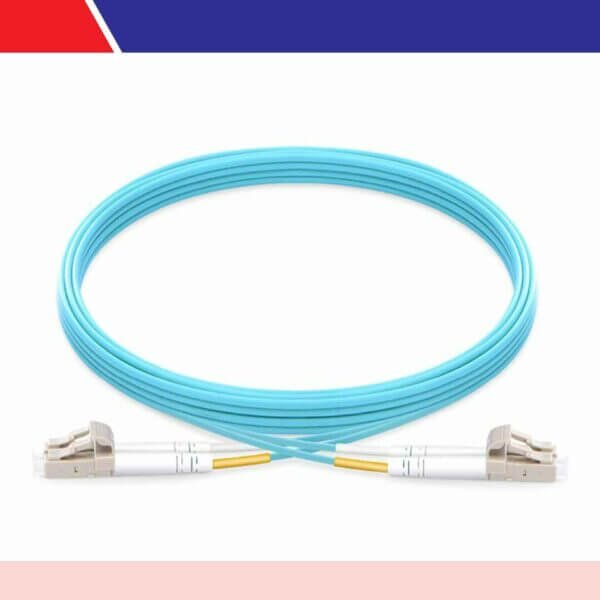

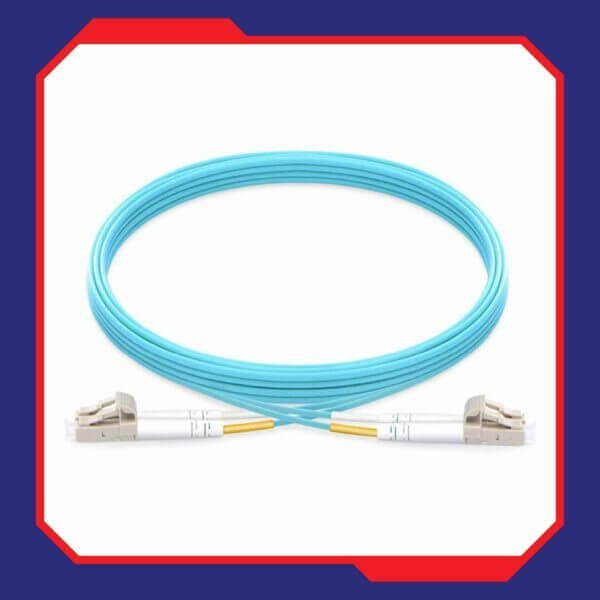

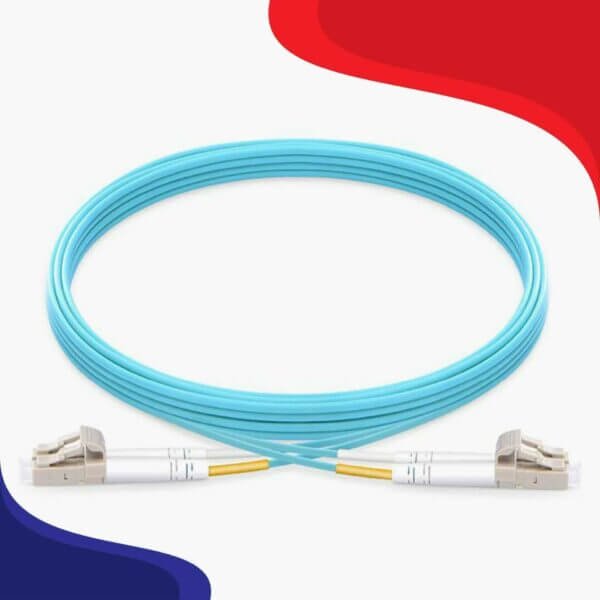

elv cable Multimode Lc-Lc-Upc Duplex Fiber Optic Patch Cord Lszh Om3
ELV CABLE fiber optic pigtail is normally a tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is
stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return
loss and low attenuation. Make sure your network is reinforced with ELV CABLE fiber pigtails, as ours are manufactured of superior quality materials. The
Pigtail are available in both single and multimode versions with either APC or UPC polish types.
Multi Mode Lc-Lc-Upc Duplex Fiber Optic Patch Cord Lszh Om3
Application
- Audio/Video Intercom System
- Public Address System
- Access Control System
- Burglar Alarm System
- Lighting Control System
- CCTV Systems
- Gate Automation
- Smart Home Automation
- Building Automation
- Computer Systems
- Electronics Circuits
- Measurement Devices
- SMATV CATV Systems
- Office Equipment’s
- And Other ELV Systems
| Optical Specifications | |||||||||||
| Mode type | Single mode / multi mode | Cable Type | Simplex/Duplex | Connector Style | SC, FC, ST, LC, MTRJ, | ||||||
| Polish type | PC,UPC,APC | Diameter | 0.9mm, 1.6mm, 2.0mm, 3.0mm | Lengths mtr. | 1,3,5,10,15 | ||||||
| Strength Member | Aramid Yarn | Outer Jacket | LSZH/PVC/OFNR/OFNP | Interchangeability &Vibration | ≤0.2dB | ||||||
| Minimum Bend radius | 10 -13mm | Wavelength | SM:1310/1550nm MM:850nm | ||||||||
| Operating temperature | -40~75°C | Jacket Color | Single mode | Yellow / Green , Yellow Blue | |||||||
| Storage temperature | -45~85°C | Multi mode | OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple) | ||||||||
| Fiber type | ITU-T G.652D, G.657A1 /A2 | Multi mode OM-2 | Multi mode OM-3 | Multi mode OM-4 | |||||||
| Insertion loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | |||||||
| Return loss | ≥60dB | ≥30dB | ≥30dB | ≥30dB | |||||||
| Ordering Information | ||
| Item Code | Description | |
| ELV-3720 | Multi Mode Lc-Lc-Upc Duplex Fiber Optic Patch Cord Lszh Om3 | |
