elv cable Rg59 Coaxial Cable 305m
ELV CABLE Rg59 Coaxial Cable 305m fiber optic pigtail is normally a tight buffered fiber cable with a connector pre terminated on one end and exposed fiber on the other. The end is
stripped and fusion spliced to a single or multi-fiber trunk. When utilized properly, the fiber optic pigtail allows light signal transmission with minimal return
loss and low attenuation. Make sure your network is reinforced with ELV CABLE fiber pigtails, as ours are manufactured of superior quality materials. The
Pigtail are available in both single and multimode versions with either APC or UPC polish types.
- Audio/Video Intercom System
- Public Address System
- Access Control System
- Burglar Alarm System
- Lighting Control System
- CCTV Systems
- Gate Automation
- Smart Home Automation
- Building Automation
- Computer Systems
- Electronics Circuits
- Measurement Devices
- SMATV CATV Systems
- Office Equipment’s
- And Other ELV Systems
Features
UP TO 3GHZ Frequency
98 % Full Braided
Indoor / outdoor use
305m Rolls
Application
CATV
MATV
SMATV
CCTV

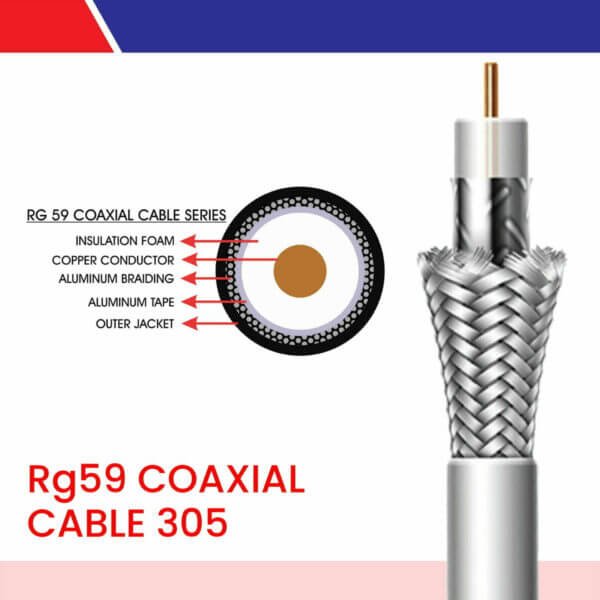

Construction Parameters
inner conductor: material BC,CCS, dia,mm 1.13
dielectric: material FPE, dia,mm 4.8
film foil type: material CCS-pet
foil coverage: 98 %
braid: material CCS
braid coverage: 144*0.1%, material pvc
outer sheath: dia, mm 7.5
ORDERING INFORMATION | |||
ELV-4211 | ELV-R5XSCK | RG59 COXIAL CABLE 305M |
